Product Features：

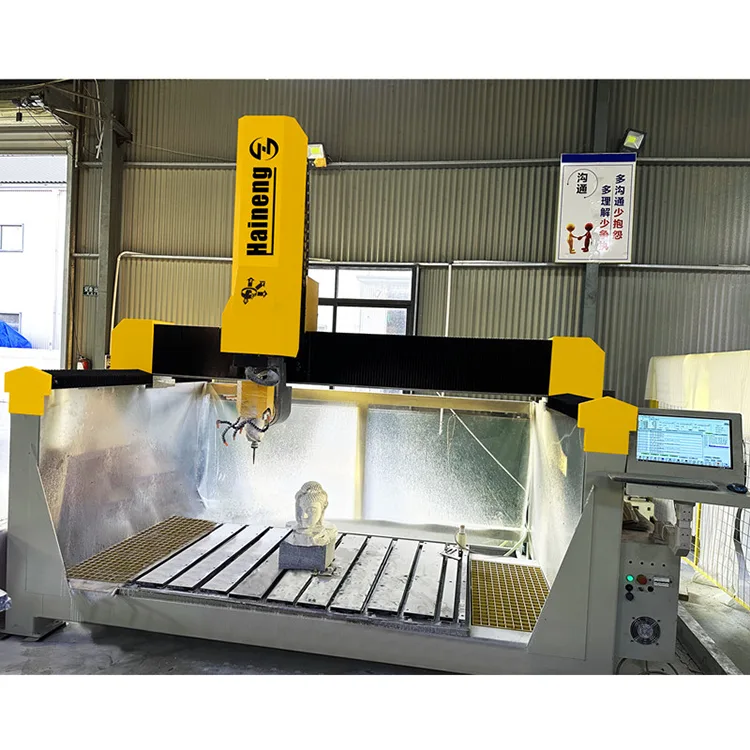

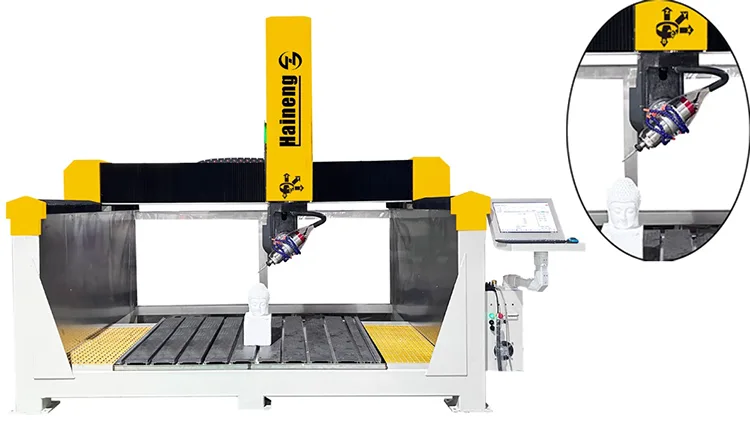

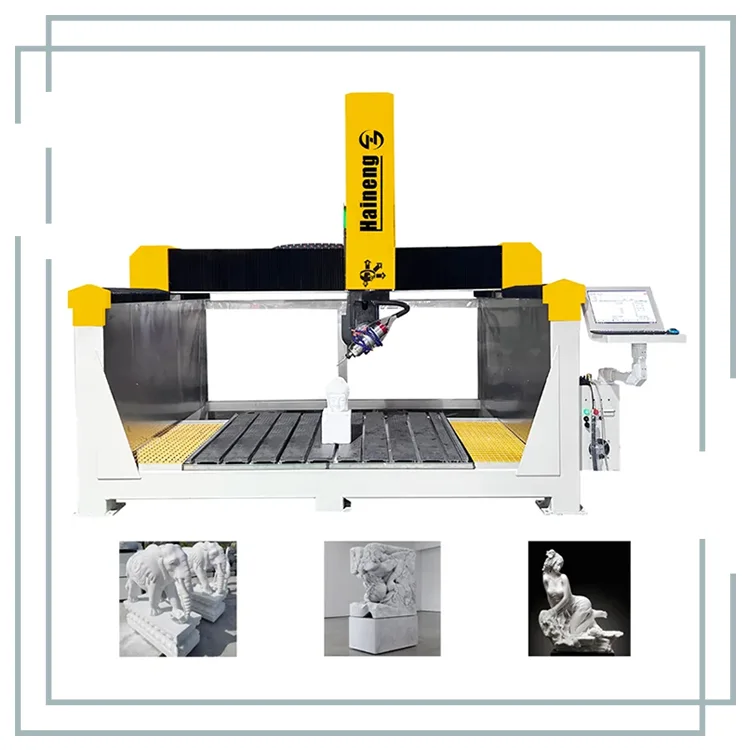

This is a 5 Axis Engraving Machine with a milling cutter for engraving .It can realize three-dimensional engraving on various kinds of stone, such as marble, granite, quartzite, sandstone, artificial stone or ceramics, glass, plastic, wood or foam.

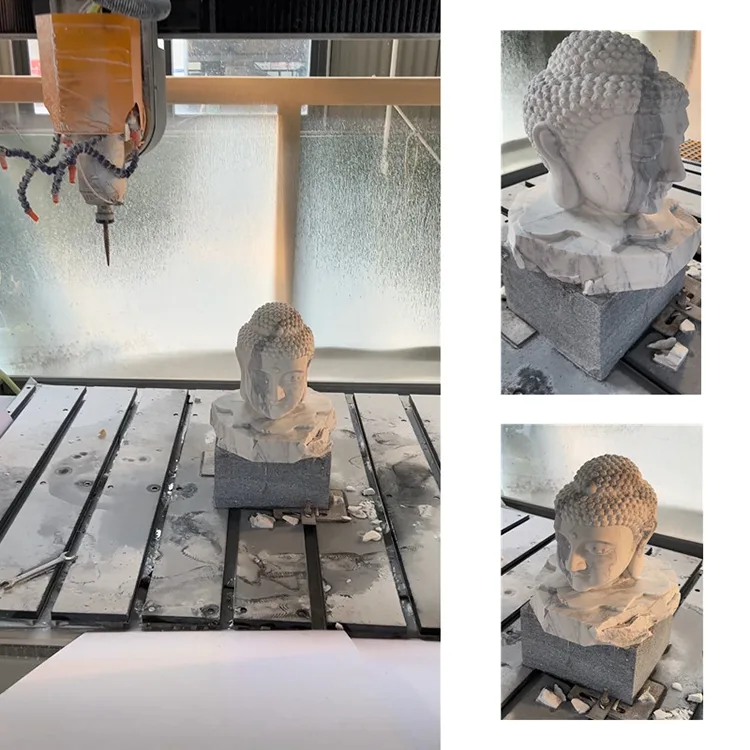

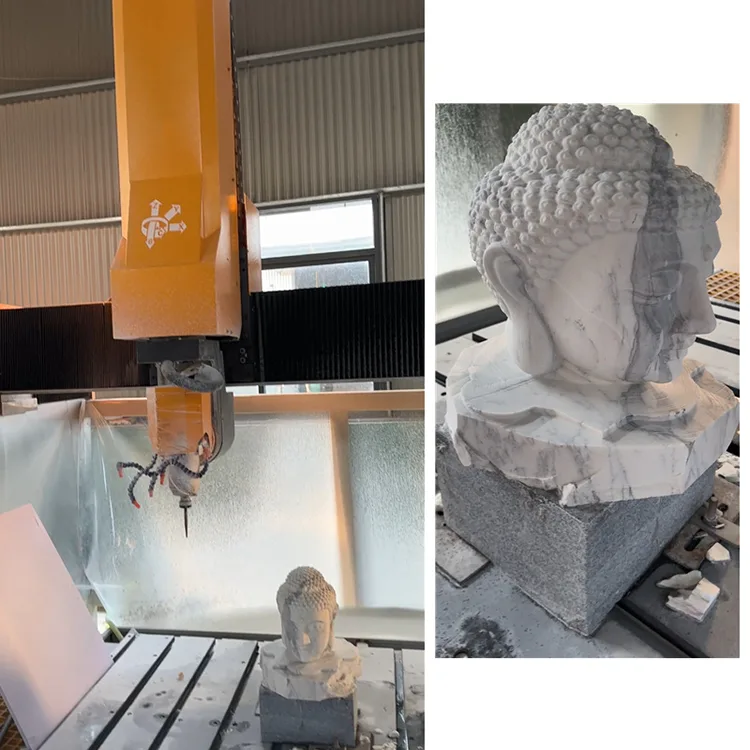

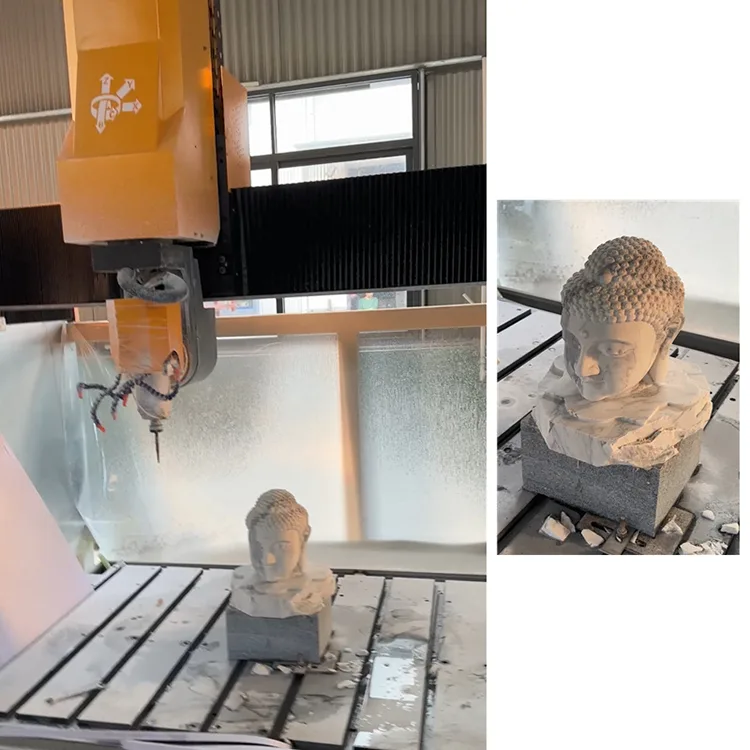

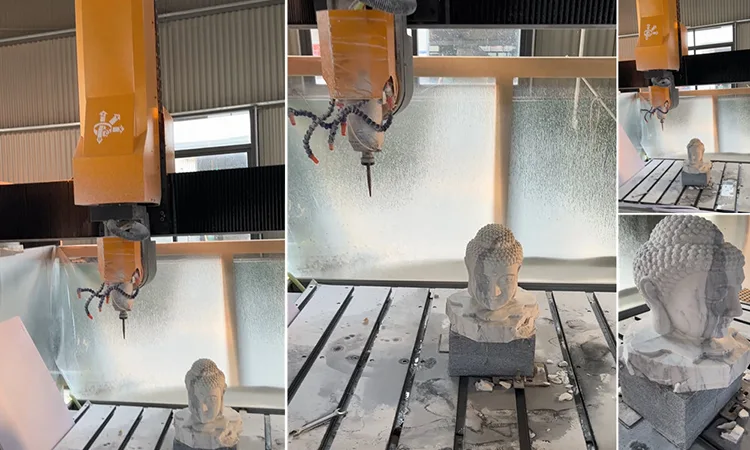

It is mainly used for processing figure sculpture, animal sculpture, large and small crafts.
Technical parameters
|
Equipment model |
DKJ-LT7010 |
|
Processing Size |
Column carving:700mm*700mm X:2000mm Y:1200mm Z:1000mm（Customizable） B:-110°~110° C:-360°~360° |
|
Driving system |
Full servo-busbar |
|
Control System |
Weihong Ncstudio 5-axis with RTCP |
|
Cooling System |
Water cooling with chiller |
|
Transmission type |
linear rail,rack,Ball screw |
|
Lubrication system |
Automatic oil filling system |
|
Working Voltage
|
380V/50Hz/(Customizable) |
|
Instruction |
NC,ENG,G-code,*u00*mmg,*plt |
|
Processing Precision |
±0.1 |
|
Processing desk |
Stainless steel,aluminum profile, Pvc board |
|
Software |
PowerMil + Ncstudio |
|
Spindle Power |
7.5kw |
|
Total power |
20kw |
|
Diamension |
3500*2200*2300mm |
|
Gross weight |
3.5T |
